SOLAR HYBRID ENERGY SYSTEM

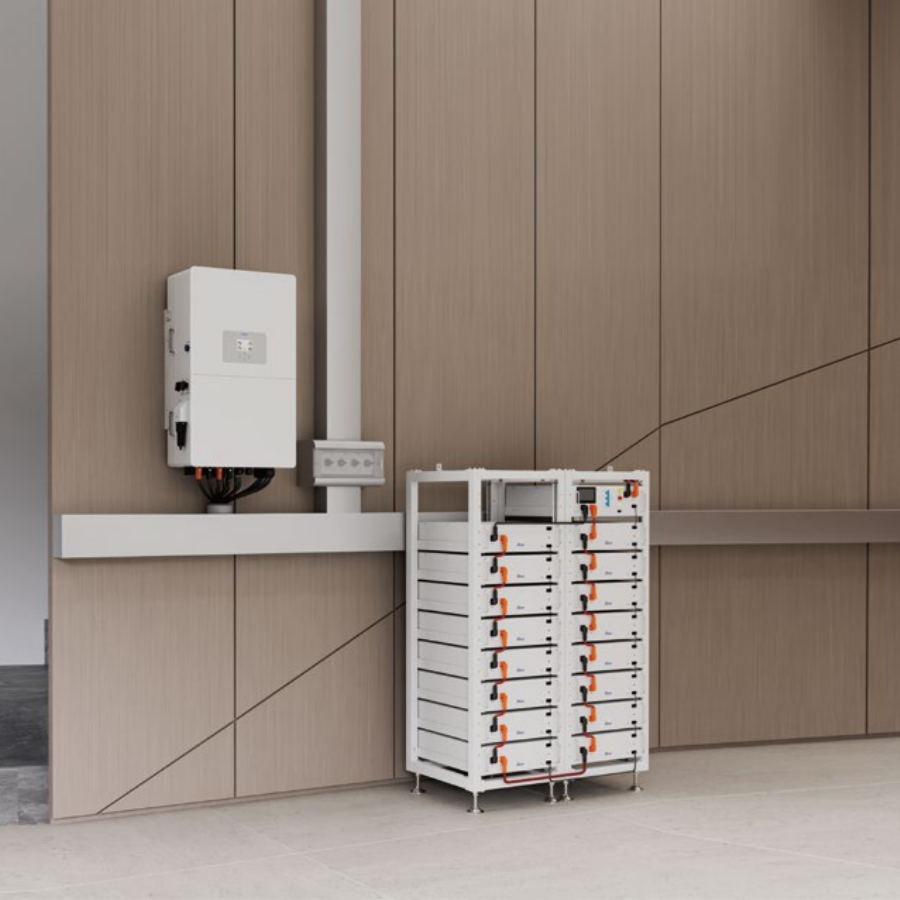

20kW 30kW 40kW Deye Complete HV Solar Energy Storage System Kit for Small-Scale Offices Use

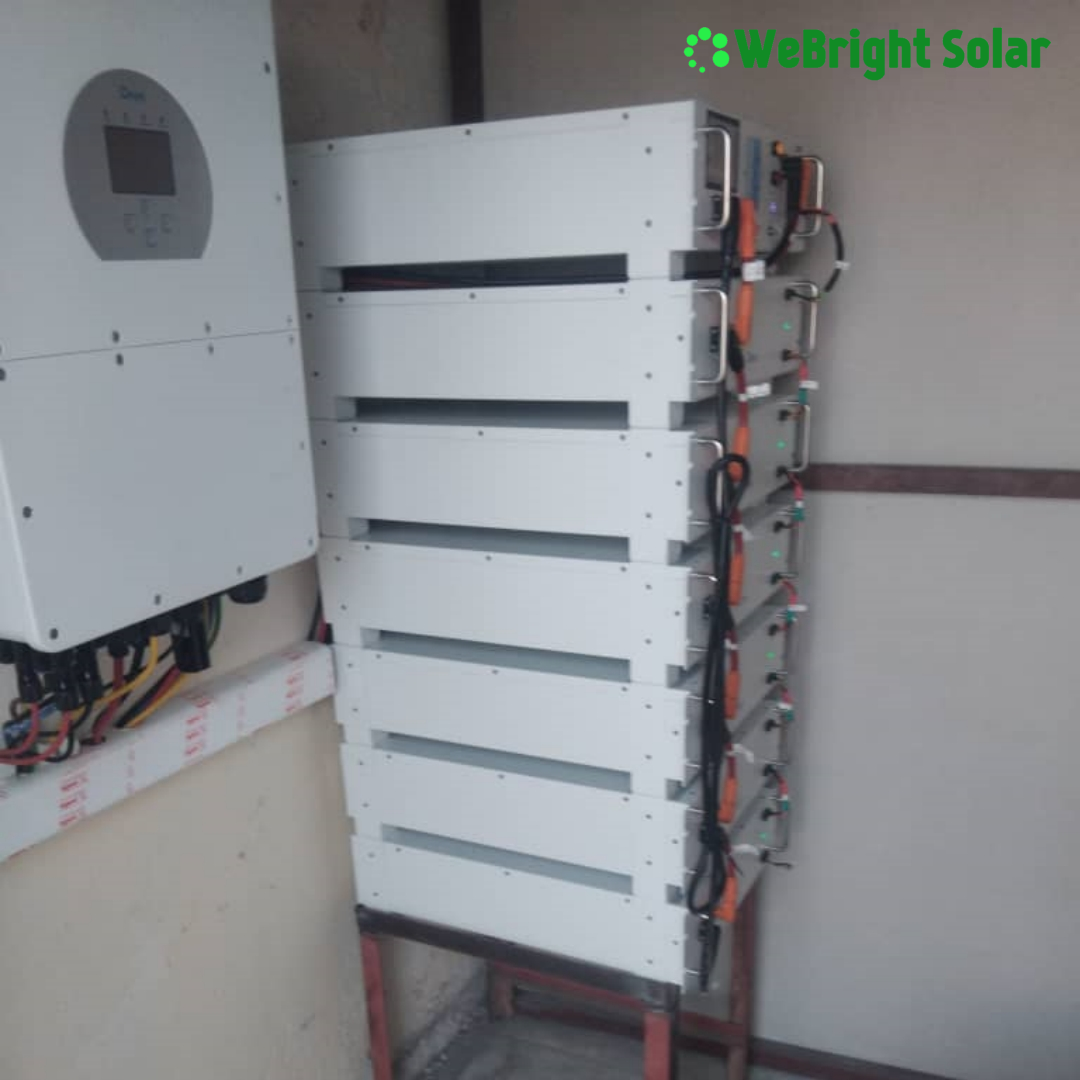

20KW 30KWh Deye Complete Solar Energy System for Villa Use

20kW 30kWh Deye Complete Solar Hybrid Inverter Energy System for Villa Use

Solar Hybrid Energy Storage System
20KW to 100KW Power Output
Hybrid Type for Residential/Commercial Use
To Connect Lithium Battery System (ESS)
Power by Solar/Battery/Grid

20KW 30KWh Complete Solar Hybrid Inverter Energy System for Villa Use

Complete solar hybrid energy system is another obvious alternative to one that is grid-tied. For homeowners or villas, or small-scale offices, solar hybrid energy storage systems are usually very good power supply unit for home use, due to there are long-life time LiFePO4 battery or lead acid battery and hybrid solar inverter, it can feed back to Grid as well as charge battery for energy storage when there is less Grid utility or electricity bill is very costly, the energy storage in battery will help a lot to solve the problem and save much electricity bill.

20kW 30kWh complete solar hybrid energy system is one package that has hybrid inverter and LiFePO4 battery pack/lead acid batteries as energy storage.

Features & Advantages

20KW/30KWh Solar Hybrid Inverter, Transformer-less, 3-Phase 380V for Power Supply

1) All in one hybrid inverter: Battery, load, grid, solar connection all supported

2) Programmable working mode: Peak-shaving, back-up, use the system however you want it

3) Compact design: Transformerless topology, light and small in size

4)Touchscreen LCD: More convenient for parameter setting and maintenance

5) Seamless transfer: Uninterruptable power supply guaranteed

6)Dry contact output: Supports remote control of DG

20kw complete solar hybrid energy system is a great option for people with average power use, such as small offices,commercial use and homes.

Solar Hybrid Energy System Configuration

Item	Model	Description	Quantity
1	Solar Panel	Mono 650W solar panel	30 pieces
2	Combiner Box	Customized	1 piece
3	Hybrid Inverter	Deye 20KW EU Standard or US Standard	1 piece
4	Battery	Lithium Battery (ESS)or Lead Acid Battery (adjustable)	30KWH adjustable
5	Mounting Support	Pitched / flat roof, ground can be customized	1 set
6	Cable	Single-core 6mm2 PV cable	400 meters
7	Connector	MC4 connector	16 pairs
8	Tools Bag	5 kinds of PV installation tools	1 bag

Solar panel, Solar Mounting System, PV combiner box and PV cable are optional.

Solar Panels

> Mono or Shingled Tech

> Peak Power Watts: 455W

> Max Power Voltage: 41.7V

> Max Power Current: 10.92A

> Open Circuit Voltage: 49.5V

> Short Circuit Current: 11.66A

> Dimensions:2094*1038*35mm

> Weight: 23.5kg

PV Mounting Bracket

>Residential Roof(Pitched Roof)

> Commercial Roof(Flat roof&workshop roof)

> Ground Solar Mounting system

> Vertical wall solar mounting system

> All aluminum structure solar mounting system

> Car parking solar mounting system

PV Combiner Box&Installation Tools

>Cross Section: 4mm2, 6mm2 Optional

>Rated Voltage:600VDC/1000VDC(TUV)

>Rated Current: 55A,70A

>Colors: Black For STD, Red Optional

>Breaker,SPD and swithches

PV Cables

Cross Section: 4mm², 6mm², 10mm² Optional

Rated Voltage: 600VDC(UL)/1000VDC(TUV

> Rated Current: 55A, 70A

Colors: Black For STD, Red Optional.

> Lifetime:≤25 Year

> 30A/1000V compatible MC

Package & Delivery

Inverter Solar panels Mounting bracket

Battery in wooden box Professional package Loading

WeBright Solar can customize your own complete solar power system and PV solution kit based on your requests. We provide grid-tie,off-grid, hybrid PV system solutions.
